PSG2 series - CAPACITIVE TOUCH

PSG212

Display

12.1"

Resolution

800x600 1024x768

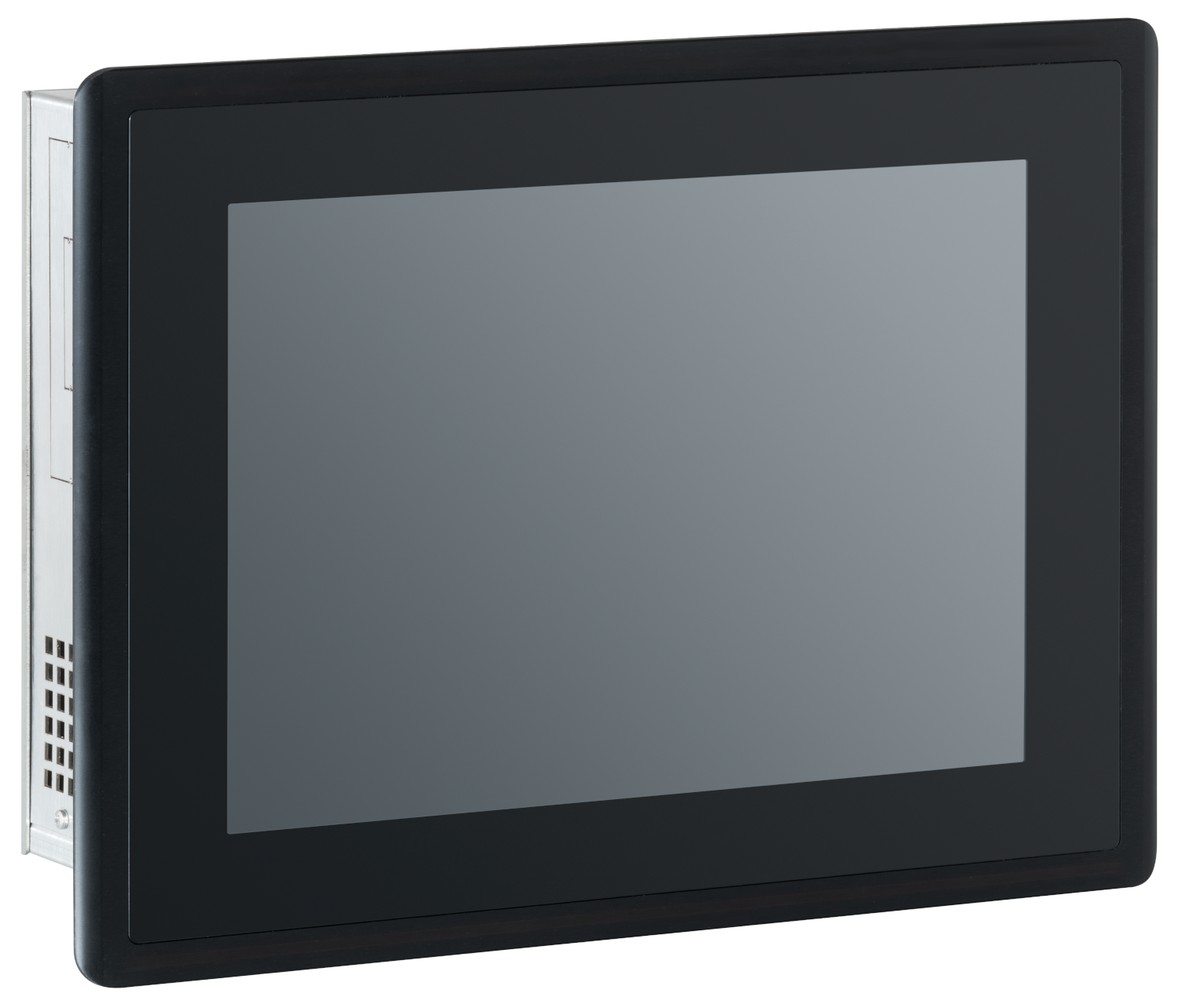

Fanless Industrial PC for panel mount extremely compact, 12.1” display, LED backlight, available with 800x600 or 1024x768 resolution. Ideally suited for industrial environments, the harsher included. Because of its versatility of configuration, PSG212 can be provided with a wide range of CPU, making it the perfect solution for the majority of the industrial applications. All the configurations can provide a 24 VDC or 110-230 VAC power supply input. The front panel with IP66 grade it’s made of a black tempered glass with edge in alluminium and projected capacitive touch screen multitouch mode.

Choose the size and configure:

Tech Specs

Documents

Display:		12.1”
Backlight:		LED
Risolution:		800x600 o 1024x768
Touch screen:		projective capacitive
CPU	Entry:	Intel Celeron J1900, N3350
	Medium:	Intel Pentium N4200
	High	Intel Core i3, i5, i7
RAM memory:		up to 32GB
Storage:		SSD (RAID optional)
Power input:		24VDC, 110-230VAC
Protection grade:		IP66 on frontal
Mountig type:		panel

Datasheets and manuals

Datasheet	Operating system	Manuale
PSG212-EM-N3350, N4200	Windows 10 64 bit	PSG212-EM-N3350, N4200
PSG212-EN-i3, i5, i7 KabyLake	Windows 10 64 bit	PSG212-EN-i3, i5, i7 KabyLake
